Honda Rebel gets updates for 2020

The A2 friendly Honda Rebel gets a host of new updates for 2020, including slipper clutch, LED lighting, a new exhaust and a higher spec ‘S’ version

Honda CMX500 Rebel 2020
Honda CMX500 Rebel 2020

THE 2020 Honda Rebel has been unveiled at the EICMA show in Italy tonight, alongside a raft of updates to the machine it also gets joined by a higher spec ‘S’ version.

Remote video URL

As with the first version of Honda’s A2 friendly cruiser, the younger rider is firmly in the crosshairs of this 471cc parallel twin-cylinder machine. For 2020 the focus has been on refining the machine and meeting the latest Euro5 regulations.

Honda CMX500 Rebel 2020
Honda CMX500 Rebel 2020

To do that Honda has had to re-engineer the bike’s exhaust, with the spent gases flowing from a 2-into-1 system that has a separate catalyst and resonator set up. Other engine mods include a slipper clutch which should provide slick shifting via the six-speed gearbox.

Honda CMX500 Rebel 2020
Honda CMX500 Rebel 2020

Other additions to the 2020 model are the LED lighting, a gear position indicator, and a revised and more comfortable seat.

Honda CMX500 Rebel 2020
Honda CMX500 Rebel 2020

Honda Rebel S (2020) features

For 2020 the Rebel will not be stepping into the A2 arena alone, as Honda has also pulled the covers off a new, higher spec version of the machine in the form of the Rebel S. The two bike differ in that the S model features some of the items from the extensive Honda Rebel accessory catalogue fitted as standard.

Honda CMX500 Rebel 2020
Honda CMX500 Rebel 2020

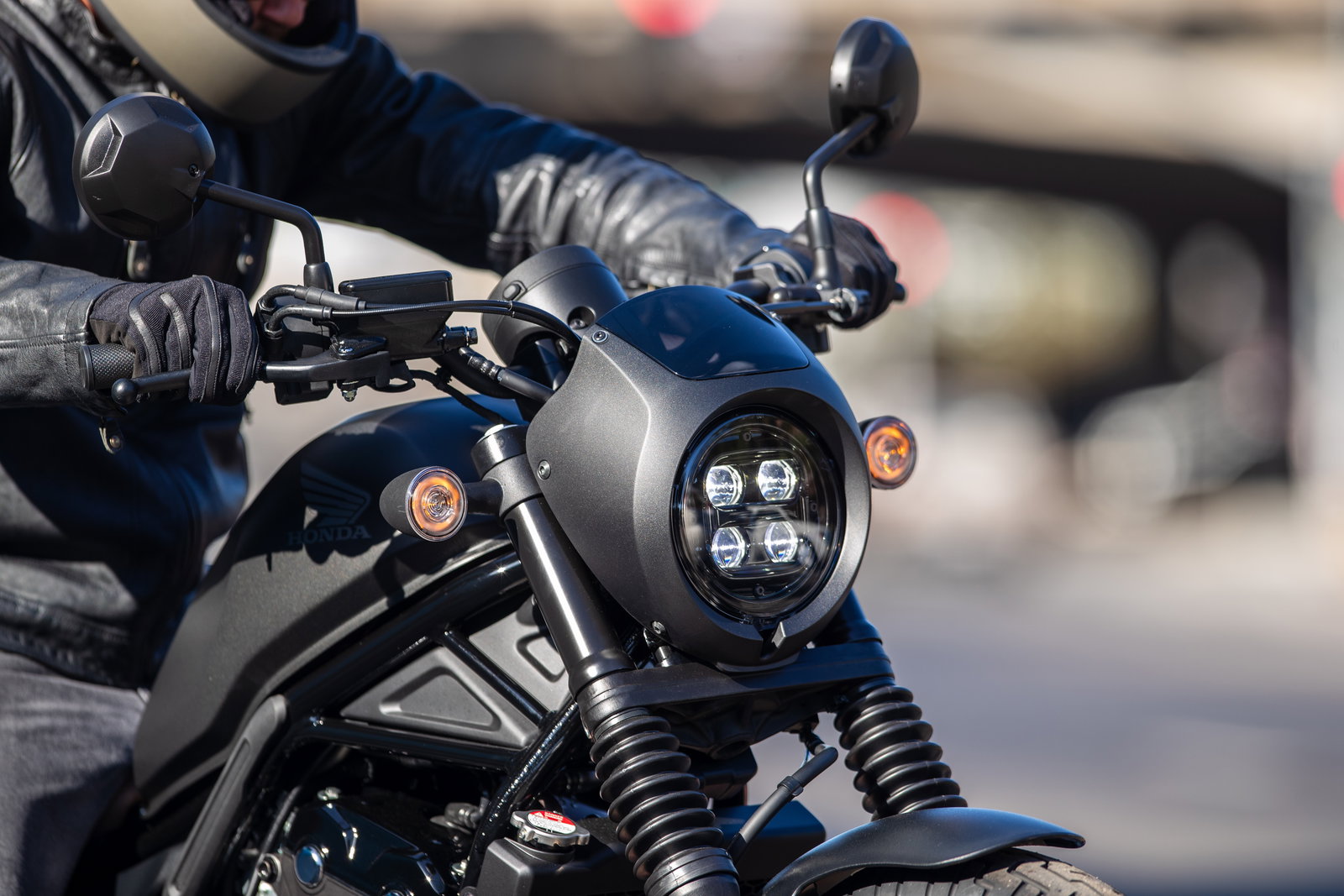

The bike, pictured above, features a headlight cowl, all-black fork covers and gaiters, a diamond-stitched seat and all the updates mentioned above on the standard bike.

Pricing for these is TBC as it stands – we’ll be on the Honda stand tomorrow to ask the UK team what they will be.

Honda CMX500 Rebel (2020) specs

ENGINE

Type

Liquid-cooled, DOHC

Engine Displacement (cm³)

471cc

No. of Valves per Cylinder

4

Bore ´ Stroke (mm)

67 x 66.8

Compression Ratio

10.7:1

Max. Power Output

34kW/8,500rpm

Max. Torque

43.3Nm/6,000rpm

Oil Capacity

3.2 litres

FUEL SYSTEM

Carburation

PGM-FI

Fuel Tank Capacity

11.2L

Fuel consumption

27km/litre

ELECTRICAL SYSTEM

Starter

Electric

Battery Capacity

12V

ACG Output

0.5kW

DRIVETRAIN

Clutch Type

Wet multiplate

Transmission Type

6-speed

Final Drive

Chain

FRAME

Type

Steel Diamond

CHASSIS

Dimensions (LxWxH) mm

2,205 x 820 x 1,090

Wheelbase

1490mm

Caster Angle

28°

Trail

110

Seat Height

690mm

Ground Clearance

125mm

Kerb Weight

191kg

Turning radius

2.8m

SUSPENSION

Type Front

41mm Telescopic forks

Type Rear

Showa twin shock

WHEELS

Rim Size Front

16M/C x MT3.00

Rim Size Rear

16M/C x MT3.50

Tyres Front

130/90-16M/C 67H

Tyres Rear

150/80-16M/C 71H

BRAKES

ABS System Type

Two channel

INSTRUMENTS & ELECTRICS

Instruments

Digital

Headlight

LED

Taillight

LED
