Updates for Honda’s NC750 range
Traction control and new A2 versions for NC750X, Integra and X-ADV
HONDA has treated its NC750 range to a round of updates for 2018.
All four models - the NC750X, NC750S, Integra and X-ADV - will be offered in new versions making 47hp for A2 licence holders.
Honda says official dealers will be able to easily convert the new 47hp versions to make the full 54hp of the standard models once riders have acquired an unrestricted licence.

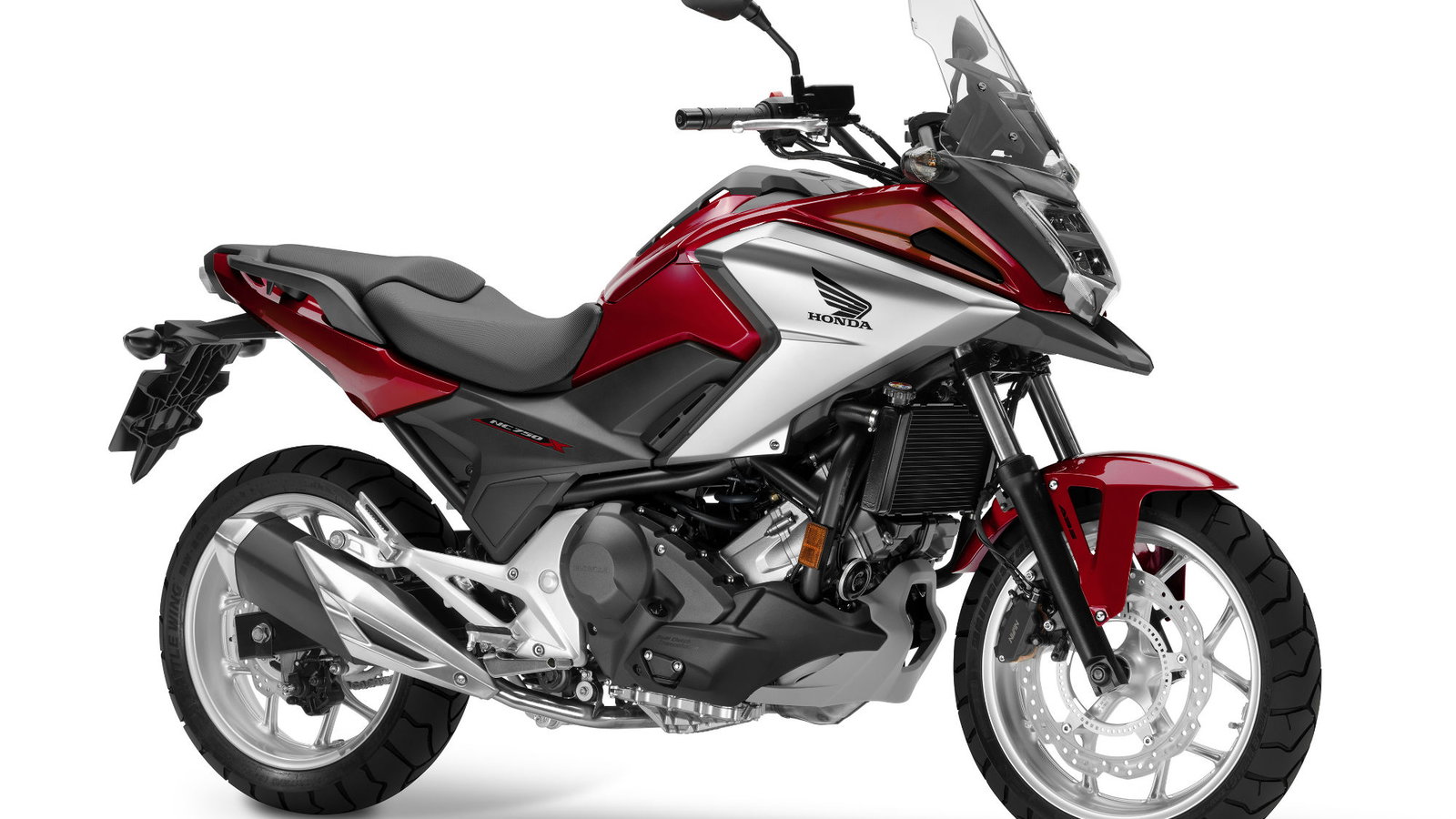

The NC750X (pictured above), Integra and X-ADV also get ‘Honda Selectable Torque Control’, or traction control, which can be switched off.
The adventure-style NC750X and X-ADV, the latter Honda’s adventure scooter, get a two-level traction control system.
The models all share a 745cc parallel-twin engine and Honda’s automatic Dual Clutch Transmission system, standard on the Integra and X-ADV and optional on the NC750X and NC750S.
The Integra is available in a new special-edition matte-metallic silver colour scheme, with wheel rim stripes and a different engine cover finish.
The X-ADV gets a new DCT mode for ‘more direct gear change for improved rear wheel traction when off-road’. It means the model now has three DCT modes: ‘D’, ‘S’ and ‘G’, the latter the new one, as well as Neutral.
Honda says the X-ADV's ratios are also now lower, ‘for quick acceleration and response’.
The updates were revealed this evening in Milan, ahead of this week’s Eicma motorcycle show.
Mr Kenichi Misaki, Honda’s Large Project Leader for the X-ADV, said: “Our development concept for the X-ADV was simple: ‘Go Have Fun!’ and we wanted to create a motorcycle that comes with an adventurous spirit as standard fitment.
“We also knew we needed the X-ADV to be truly usable as a tool to move around the city, and be full of utility and user-friendly features. And come the weekend it can be used to escape all of the daily routine, in a unique and uplifting new style.”
Scroll down for more pictures.
Here are the specs, straight from Honda:
2018 Honda NC750X Technical Specifications
ENGINE | |
Type | Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder. EURO4 compliant. |
Displacement | 745cc |
Bore & Stroke | 77mm x 80mm |
Compression Ratio | 10.7 : 1 |
Max. Power Output | 40.3kW @ 6,250rpm (95/1/EC) |
Max. Torque | 68Nm @ 4,750rpm (95/1/EC) |
Oil Capacity | MT : 3.7L DCT : 4.1L |
FUEL SYSTEM | |
Carburation | PGM-FI electronic fuel injection |
Fuel Tank Capacity | 14.1 litres |
Fuel Consumption | MT: 80.8 mpg (WMTC mode) DCT: 80.8 mpg (WMTC mode-Tested in D-Mode) |
ELECTRICAL SYSTEM | |
Starter | Electric |
Battery Capacity | 12V/11.2AH |
ACG Output | MT : 420W/5000rpm DCT : 450W/5000rpm |
DRIVETRAIN | |
Clutch Type | MT：Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch |
Transmission Type | MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission |
Final Drive | Chain |
FRAME | |
Type | Diamond; steel pipe |
CHASSIS | |
Dimensions (L´W´H) | 2230mm x 845mm x 1350mm |
Wheelbase | 1535mm |
Caster Angle | 27° |
Trail | 110mm |
Seat Height | 830mm |
Ground Clearance | 165mm (minimum) |
Kerb Weight | MT: 220kg DCT: 230kg |
SUSPENSION | |
Type Front | 41mm telescopic fork, 153.5mm stroke |
Type Rear | Monoshock damper, Pro-Link swingarm, 150mm travel |
WHEELS | |
Type Front | Multi-spoke cast aluminium |
Type Rear | Multi-spoke cast aluminium |
Rim Size Front | 17M/C x MT3.50 |
Rim Size Rear | 17M/C x MT4.50 |
Tyres Front | 120/70-ZR17M/C (58W) |
Tyres Rear | 160/60-ZR17M/C (69W) |
BRAKES | |
ABS System Type | 2-channel ABS |
Type Front | 320mm single wavy hydraulic disc with 2-piston caliper and sintered metal pads |
Type Rear | 240mm single wavy hydraulic disc with single-piston caliper and resin mold pads |
INSTRUMENTS & ELECTRICS | |
Instruments | Digital speedometer, digital bar-type tachometer, clock, bar-type fuel meter, two trip meters, gear position indicator, ‘instant’ and ‘average’ fuel consumption and coolant temperaturewarning light. |
Security System | HISS |
Headlight | LED |
Taillight | LED |
2018 Honda NC750S Technical Specifications
ENGINE | |
Type | Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder |
Displacement | 745cc |
Bore x Stroke | 77mm x 80mm |
Compression Ratio | 10.7 : 1 |
Max. Power Output | 40.3kW @ 6,250rpm (95/1/EC) |
Max. Torque | 68Nm @ 4,750rpm (95/1/EC) |
Oil Capacity | MT: 3.7L DCT: 4.1L |
CO2 emissions | 81g/km |
FUEL SYSTEM | |
Carburation | PGM-FI electronic fuel injection |
Fuel Tank Capacity | 14.1L |
Fuel Consumption | MT: 80.8 mpg (WMTC mode) DCT: 80.8 mpg (WMTC mode-Tested in D-Mode) |
ELECTRICAL SYSTEM | |
Starter | Electric |
Battery Capacity | 12V/11.2AH |
ACG Output | MT：420W/5000rpm DCT : 450W/5000rpm |
DRIVETRAIN | |
Clutch Type | MT : Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch |
Transmission Type | MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission |
Final Drive | Chain |
FRAME | |
Type | Diamond; steel pipe |
CHASSIS | |
Dimensions (L´W´H) | 2215mm x 775mm x 1130mm |
Wheelbase | 1520mm |
Caster Angle | 27° |
Trail | 110mm |
Seat Height | 790mm |
Ground Clearance | 140mm (minimum) |
Kerb Weight | MT: 217kg DCT: 227kg |
SUSPENSION | |
Type Front | 41mm telescopic fork, 120mm stroke |
Type Rear | Monoshock damper, Pro-Link swingarm, 120mm travel |
WHEELS | |
Type Front | Multi-spoke cast aluminium |
Type Rear | Multi-spoke cast aluminium |
Rim Size Front | 17M/C x MT3.50 |
Rim Size Rear | 17M/C x MT4.50 |
Tyres Front | 120/70-ZR17M/C (58W) |
Tyres Rear | 160/60-ZR17M/C (69W) |
BRAKES | |
ABS System Type | 2-channel ABS |
Type Front | 320mm single wavy hydraulic disc with 2-piston caliper and sintered metal pads |
Type Rear | 240mm single wavy hydraulic disc with single-piston caliper and resin mold pads |
INSTRUMENTS & ELECTRICS | |
Instruments | Digital speedometer, digital bar-type tachometer, clock, bar-type fuel meter, two trip meters, gear position indicator, ‘instant’ and ‘average’ fuel consumption and coolant temperature warning light. |
Security System | HISS |
Headlight | BULB TYPE : 12V; 60W x 1 (high) / 55W x 1 (low) |
Taillight | LED |
2018 Honda X-ADV Technical Specifications
ENGINE | |
Type | Liquid-cooled, L2, SOHC |
Engine Displacement (cm³) | 745cc |
No. of Valves per Cylinder | 4 |
Bore ´ Stroke (mm) | 77 x 80 |
Compression Ratio | 10.7:1 |
Max. Power Output | 40.3kW @ 6,250rpm |
Max. Torque | 68Nm @ 4,750rpm |
Oil Capacity | 4.1L |
FUEL SYSTEM | |
Carburation | PGM-FI |
Fuel Tank Capacity | 13.1L |
Fuel Consumption | 77.7mpg |
ELECTRICAL SYSTEM | |
Starter | Electric |
Battery Capacity | 12V-11.2AH |
ACG Output | 420W @ 5,000rpm |
DRIVETRAIN | |
Clutch Type | Wet multiplate Hydraulic / Wet multiplate Hydraulic Dual clutch (DCT) |
Transmission Type | 6-speed |
Final Drive | Chain |
FRAME | |
Type | Steel Diamond |
CHASSIS | |
Dimensions (LxWxH) | 2245x910x1375 |
Wheelbase | 1,590mm |
Caster Angle | 27° |
Trail | 104mm |
Seat Height | 820mm |
Ground Clearance | 162mm |
Kerb Weight | 238kg |
Turning radius | 2.8m |
SUSPENSION | |
Type Front | Adjustment |
Type Rear | Prolink with Rear Shock Preload adjustment |
WHEELS | |
Rim Size Front | 17 inch |
Rim Size Rear | 15 inch |
Tyres Front | 120/70 R17 |
Tyres Rear | 160/60 R15 |
BRAKES | |
ABS System Type | 2 Channel |
INSTRUMENTS & ELECTRICS | |
Instruments | Digital |
Headlight | LED |
Taillight | LED |
2018 Honda Integra Technical Specifications
ENGINE | |
Type | Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder |
Displacement | 745cc |
Bore & Stroke | 77mm x 80mm |
Compression Ratio | 10.7 : 1 |
Max. Power Output | 40.3kW @ 6,250rpm (95/1/EC) |
Max. Torque | 68Nm @ 4,750rpm (95/1/EC) |
Oil Capacity | 4.1L |
Ignition | Computer-controlled digital transistorised with electronic advance |
CO2 emissions | 81g/km |
FUEL SYSTEM | |
Carburation | PGM-FI electronic fuel injection |
Fuel Tank Capacity | 14.1 litres |
Fuel Consumption | 80.8 mpg (WMTC mode-Tested in D-Mode) |
ELECTRICAL SYSTEM | |
Starter | Electric |
Battery Capacity | 12V/11.2AH |
ACG Output | 448W/5000rpm |
DRIVETRAIN | |
Clutch Type | Wet multiplate hydraulic 2-clutch |
Transmission Type | 6-speed Dual Clutch Transmission |
Final Drive | Chain |
FRAME | |
Type | Diamond; steel pipe |
CHASSIS | |
Dimensions (L´W´H) | 2215mm x 810mm x 1440mm |
Wheelbase | 1525mm |
Caster Angle | 27° |
Trail | 110mm |
Seat Height | 790mm |
Ground Clearance | 135mm |
Kerb Weight | 238kg |
SUSPENSION | |
Type Front | 41mm telescopic fork, 120mm stroke |
Type Rear | Monoshock damper, Pro-Link swingarm, 120mm travel |
WHEELS | |
Type Front | Multi-spoke cast aluminium |
Type Rear | Multi-spoke cast aluminium |
Rim Size Front | 17M/C x MT3.50 |
Rim Size Rear | 17M/C x MT4.50 |
Tyres Front | 120/70-ZR17M/C (58W) |
Tyres Rear | 160/60-ZR17M/C (69W) |
BRAKES | |
ABS System Type | 2-channel ABS |
Type Front | 320mm single wavy hydraulic disc with 2-piston caliper and sintered metal pads |
Type Rear | 240mm single wavy hydraulic disc with single-piston caliper and resin mold pads |
INSTRUMENTS & ELECTRICS | |
Instruments | Digital speedometer, digital bar-type tachometer, clock, bar-type fuel meter, two trip meters, gear position indicator, ‘instant’ and ‘average’ fuel consumption and coolant temperature warning light. |
Security System | HISS |
Headlight | LED |
Taillight | LED |
